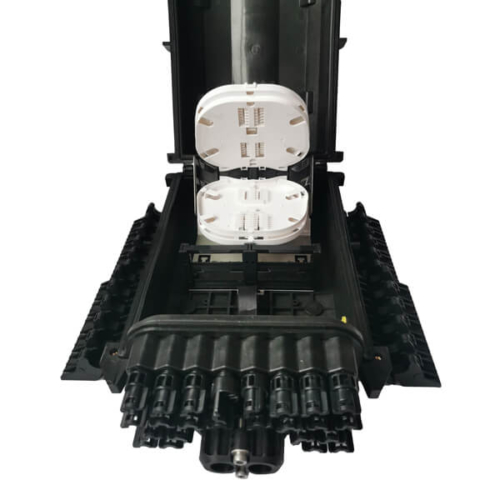

FTTH Outdoor Wall mount Fiber Distribution Box is designed for the FTTx project and provide mechanical protection for fiber management system that include the functions of patching, splicing and passive optic components integration indoor or outdoor environments. This fiber distribution box is typically used with 1×8 or 1×16 Micro PLC Splitter & mounted with SC or LC Fiber adapter for FTTx access networks. It is the special type Fiber optic splitter terminal box, it support wall mount installation, be made of high impact plastic. Anti-UV,Ultra violet resistant and rainfall resistant.
Outdoor Wall mount fiber distribution box 16 Ports
Description
Item No.: FLK-FAT-216N
Outside dimension: 232x152x60mm
Material of Box body: PC+ABS plastic
Input cable diameter:: 4xφ4-12mm
Drop cable diameter: 16×φ3-5mm
Adapter Type: 16xSC Simplex
Splice Capacity: 16 fibers
PLC Splitter (Optional): 1×8 or 1×16 Micro Splitter
Feature
IP Protection grade: IP55
Made of Brand new plastic LSZH.
Double protection- the first cover protect the customer area and the secondary cover to protect splice area.
Clear fiber function area division and clear fiber routing.
Special slot for Micro PLC Splitter 1×8 or 1×16 in splice tray.
Splice tray can hold on 120 degree when wall-mounted and full load.
Adapter holders can be lifted a little and make the installation easy.
