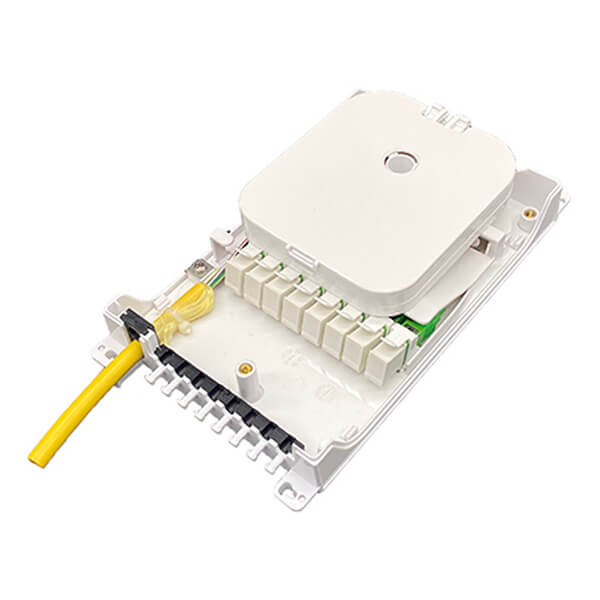

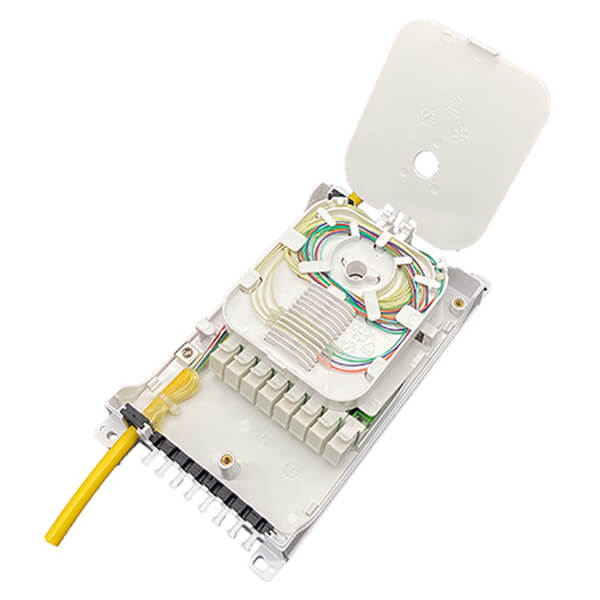

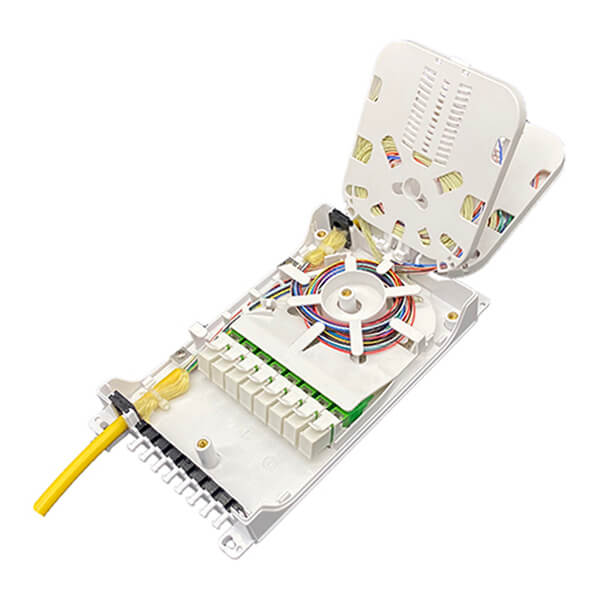

New design 8 Ports Fiber termination box with flip cover

New design 8 Ports Fiber termination box with flip cover

New design 8 ports Fiber Termination Box is designed for the FTTx project and provide mechanical protection for fiber management system that include the functions of patching, splicing and passive optic components integration indoor or outdoor environments. This fiber distribution box is typically used with 1×4 or 1×8 Micro PLC Splitter & mounted with SC or LC Fiber adapter for FTTx access networks. It is the special type Fiber optic splitter terminal box, it support wall mount installation, be made of high impact plastic. Anti-UV,Ultra violet resistant and rainfall resistant.

SKU: FLK-FAT-208G Category:

Description

Part No.: FLK-FAT-208G
Dimension: 212×126×50 mm
Cable ports: 2 Input & 2 Output
Input Cable diameter: φ10.0mm
Output ports & Cable diameter: 8×φ5mm, or figure 8 cables
Adapter Type: 8xSC Adapters
Splicing Capacity of each tray: 2PCS *12 FO Trays
Micro Splitter: 1×4 or 1×8 Micro splitter optional
Mounting: Type Wall mount

Feature

1. Made of Brand new plastic LSZH.
2. Double protection- the first cover protect the customer area and the secondary cover to protect splice area.
3. Clear fiber function area division and clear fiber routing.
4. Special slot for Micro PLC Splitter 1×4 or 1×8 in splice tray.
5. Splice tray can hold on 120 degree when wall-mounted and full load.
6. Adapter holders can be lifted a little and make the installation easy.
