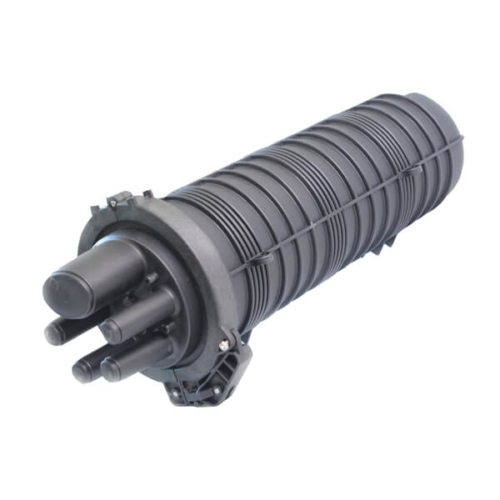

FOSC-GJS-D308 Vertical Fiber Optic Splice Closure can be used as joint box to protect fiber splice connection of fiber cables, and as branch application for cables of bunchy fiber and ribbon fiber. It is suitable for aerial, duct, or buried applications. 12 fiber or 24 fiber splice trays are pre-installed according to customer’s requirement, the splice capacity ranges from 12 to 240 fibers. The trays could be increased and reduced easily in on-site operation.
240 Cores Vertical Fiber Optic Splice Closure
Description
Model No.: FOSC-GJS-D308
Dimension (HxW): 455mm×220mm
Cable ports: 7 ports (1 oval & 6 round)
Cable Diameter: Φ8-36mm
Splice tray: Single: 12 cores or Double: 24 cores
Number of Splice Tray: 10 Trays
Max Capacity of FOSC: 12-240 Cores
Feature
IP Portection level: IP68
Can be used in straight-through and branch application for cables of bunchy fiber and ribbon fiber.
Suitable for aerial, duct, or buried applications.
No special tools required, easy to install and open
Trays increased and reduced easily.
Perfect performance in sealing.
