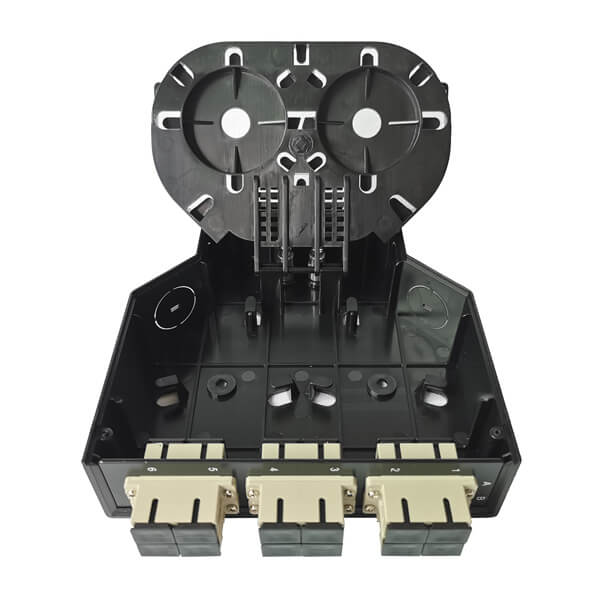

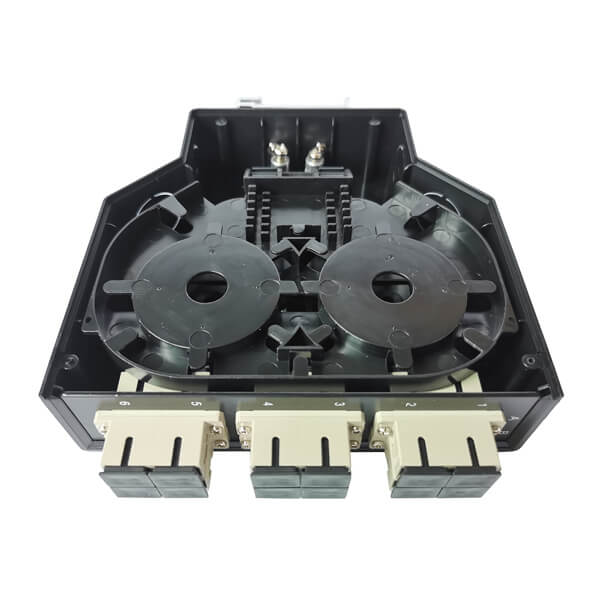

Plastic Din Rail Mount Fiber Patch Panel provides an effective solution for control panels and distribution cabinets where DIN mounted equipment is used. The cable entry is from the bottom of the enclosure which allows 1 cable to be secured using a cable gland. The Din Rail Mount Fiber Enclosue can be loaded with a variety of adapters like ST, SC and LC.
Plastic Din Rail Mount Fiber Patch Panel
Description
Model | Dimension | Adapter Type | Adapter Qty | Splicing Capacity |
FLK-DIN-RFP-SC12S | 133x130x35mm | SC Simplex Adapter | 12 | 12 |
FLK-DIN-RFP-SC6S | 133x130x35mm | SC Simplex Adapter | 6 | 6 |
FLK-DIN-RFP-SC6D | 133x130x35mm | SC Duplex Adapter | 6 | 12 |
FLK-DIN-RFP-LC6D | 133x130x35mm | LC Duplex Adapter | 6 | 12 |
FLK-DIN-RFP-FC12 | 133x130x35mm | FC Simplex Adapter | 12 | 12 |
FLK-DIN-RFP-ST12 | 133x130x35mm | ST Simplex Adapter | 12 | 12 |
Feature
Standard size, light weight and reasonable structure
Material: PC+ABS, adapter plate: cold rolled steel
Flame Rating: UL94-V0
Cable tray can be overturn, easy to manage.
Optional adapter and adapter plate.
Din guide rail, easy to install on rack panel in cabinet.
