LC to LC Outdoor Armored Patch cord Cable 4Cores is metal steel armored 5.0mm cable assenmbly which used for overhead or direct buried Installation. It provide the jacket material of TPU, LSZH, or HDPE optional.
LC to LC Outdoor Armored Patch cord Cable 4Cores
Description

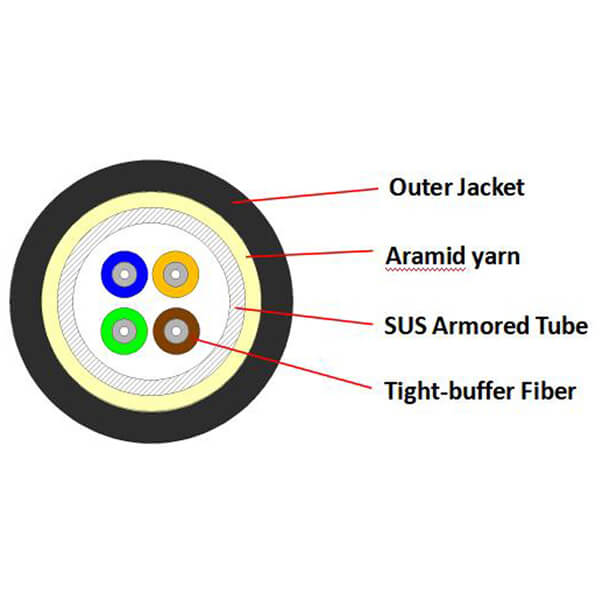

5.0mm Outdoor Armored Cable Specifications
| Items | Specifications | |
| Fiber Count | 4 Cores | |
| Fiber Type | SM G657.A1 | |
| Tight buffer | Dimension | 600±15μm |
| Color | Blue/Orange/Green/Gray | |
| Strength Member | Material | Aramid Yarn |
| Armored Tube | Dimension | 2.4±0.2mm |
| Material | SUS 202 Steel Tube | |
| Outer Jacket | Dimension | 5.0±0.2mm |
| Material | LSZH | |
| Color | Black | |
LC to LC Outdoor Armored Patch Cable OS2 4 Cores Specifications
| Armored Cable Type | Outdoor Round Armored Optical Cable | |
| Fiber Type | SM G657A1 | |
| Jacket & Color | LSZH / Black | |
| Exterior sheath diameter | 5.0±0,2mm | |
| Connector on both sides | LC/UPC to LC/UPC | |
| LC Fan-out Length | 0.5m | |
| Total Length | 100m | |
| Insertion Loss (max.) | ≤0,3dB | |
| Return Loss | UPC>50dB | |
| Radius of curvature | 30mm | |
| Cycles | >1000 insertions | |
| Maximum Tensile Strength | Single fiber Cord 120N | |
| Maximum Traction Rupture | Single fiber Cord 400 N |
Feature
1. Good mechanical and environmental characteristics.
2. Flame retardant characteristics meet the requirements of relevant standards
3. The mechanical characteristics meet the requirements of relevant standards.
4. Soft, flexible, easy to lay and splice, and with big capacity data transmission
5. Meet various requirements of market and clients.
