3U High Density Rotary Fiber Patch Panel Up to 144FO is ideal design for fiber termination and distrubtion cable splicing in data center system. 3U Rotay high density ODF is made of cold roll steel, splice tray can be rotated out. It could be pre-terminated with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.

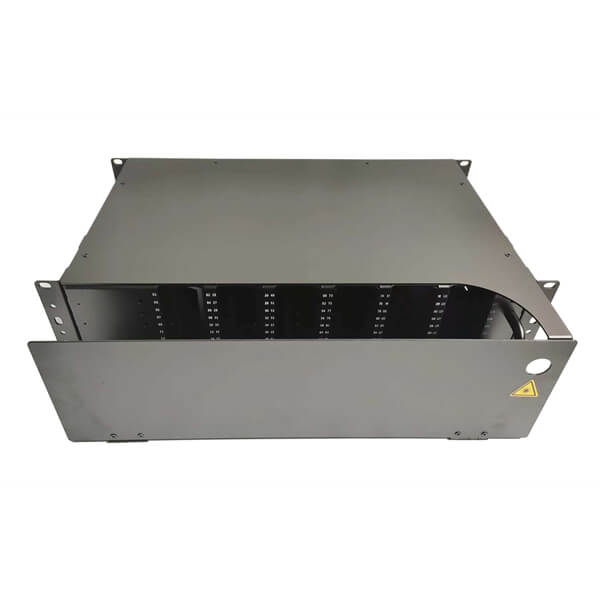

3U High Density Rotary Fiber Patch Panel Up to 144FO
Description
| Model | Dimension | Splice Capacity | Adapter Type | No. of Splice tray | ODF Material |
| FLK-FPP-RSW-F144 | 482x396x130mm | 144 FO | SC, FC, ST | 6pcs*24 Cores Splice Trays | Cold-rolled steel |
| FLK-FPP-RSW-F128 | 482x396x130mm | 128 FO | SC, FC, ST | 6pcs*24 Cores Splice Trays | Cold-rolled steel |
| FLK-FPP-RSW-F120 | 482x396x130mm | 120 FO | SC, FC, ST | 5pcs*24 Cores Splice Trays | Cold-rolled steel |
| FLK-FPP-RSW-F96 | 482x396x130mm | 96 FO | SC, FC, ST | 4pcs*24 Cores Splice Trays | Cold-rolled steel |
Feature
- Standard size, can be rackmount and wall mount
- Splice tray inside changeable
- Can be used in 19”, 23” standard distribution frame
- Suitable for ribbon and single fiber
- Various panel plate to fit different adapter interface
- Front mark on the plate is easy for identification and operation
- 24C, 36C, 48C, 72C, 96C, 120C or 144Coptional, with or without fiber optic pigtails and adapters
