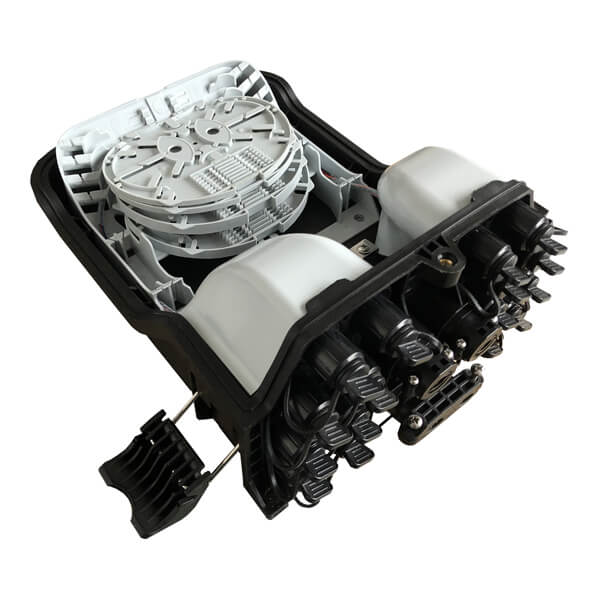

16 Ports CTO NAP Fiber Termination Box for Mini SC is used as Pre-connectorized optical distribution box for the feeder cable to connect with round drop cable in FTTx communication network system. The fiber terminal box allows 16pcs round drop cable with pre-connectorized IP68 Mini SC Waterproof connectors as output ports. The fiber distribution box can splice and connect the optical fibers in pole or wall mounted & aerial mounted for both indoor and outdoor use with IP65 protection level.
16 Ports CTO NAP Fiber Termination Box for Mini SC
Description
| Item No. | FLK-AFAT-330 |
| Dimension | 320×214×133mm |
| Body material | PC+ABS |
| Uncut cable ports | 1 oval Cable entry for uncut cable Φ8-14mm |
| Entry cable ports | 2 entry cable ports of Φ16mm |
| Drop cable ports | 16 ports IP68 Mini SC Pre-connected adapter |

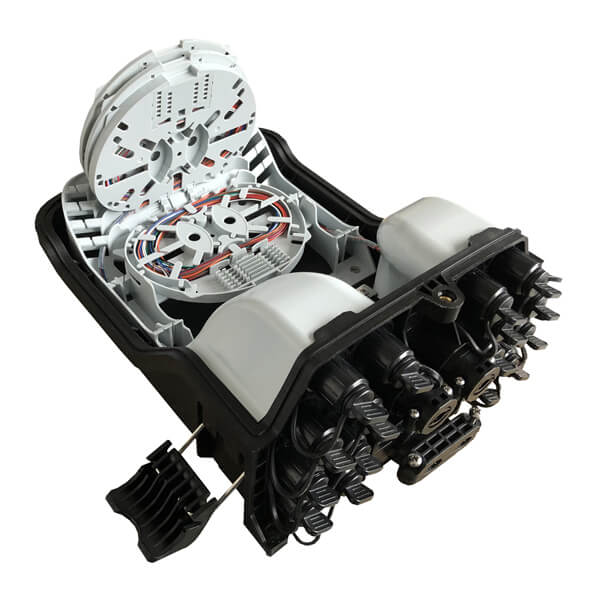

| Splice Tray | Max. 4pcs Splice tray |
| Max. Splicing Capacity | 48 fibers |
| PLC Splitter | 1×4, 1×8 or 1×16 Micro PLC splitter |
| Sealing Structure | Mechanical Sealing and Clip lock |
Feature
- IP Protection Grade: IP65
- The fiber terminal box is used for IP68 Mini SC Waterproof connector.
- Advanced structure design, easy operation and reasonable routing.

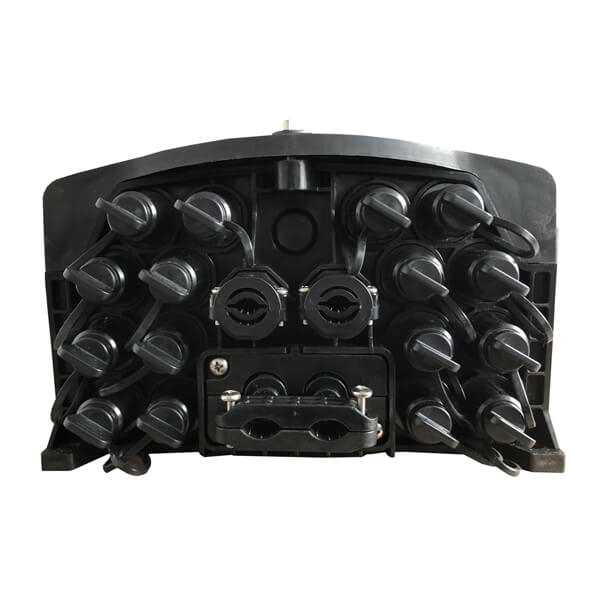

- 1 oval input, 2 derivative inputs and 16pre-plugged Mini SC adapters
- Available for 1×4, 1×8 or 1×16 Micro PLC splitter
- Adopt plastic clip lock foreasy reopen and maintenance
- Applicable for pole-mounted, air-mounted, or wall-mounted.
- It can be equipped with a tray to meet the storage of 50 meters of 5mm round cable.
