10FO Mini SC Aerial Fiber Terminal Box for Drop Cable

10FO Mini SC Aerial Fiber Terminal Box for Drop Cable

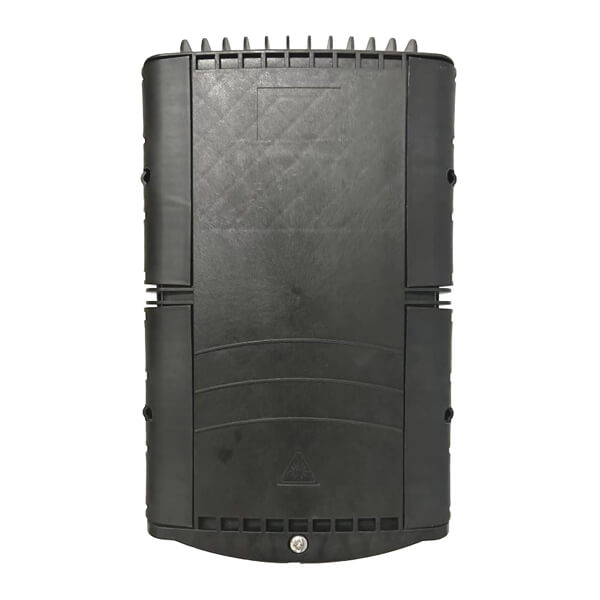

10FO Mini SC Aerial Fiber Terminal Box for Drop Cable is used for the feeder cable to connect with round drop cable in FTTx network system. The Aerial fiber terminal box allows 10pcs drop cable with pre-connectorized IP68 Mini SC Waterproof connectors as output ports. The fiber splice enclosure can splice and connect the optical fibers in pole or wall mounted & aerial mounted for both indoor and outdoor use with IP68 protection level.

SKU: FLK-AFAT-310 Category:

Description

Item No. FLK-AFAT-310
Dimension 395×210×128mm
Body material PP+GF
Uncut cable ports 1 oval Cable entry for uncut cable Φ6-18mm
Entry cable ports 2 entry cable ports of Φ5-12mm
Drop cable ports 10 ports Pre-plugged Mini SC adapters

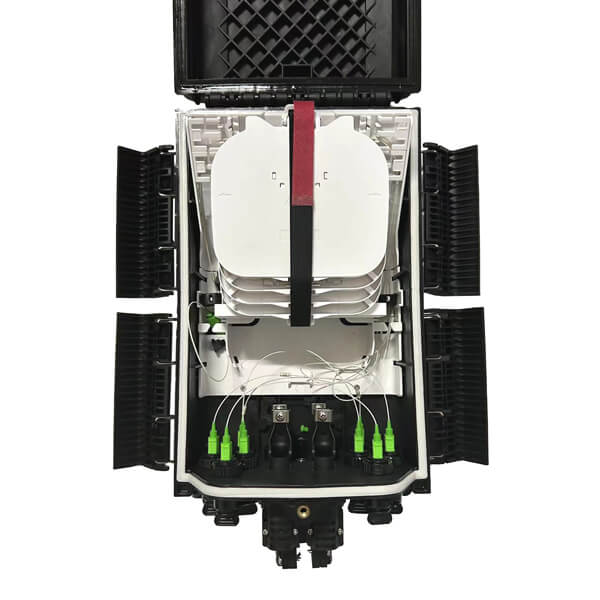

Splice Tray Max. 4pcs 12cores Splice tray
Max. Splicing Capacity 48 Cores
PLC Splitter 1×4 or 1x8Micro PLC splitter
Sealing Structure Mechanical Sealing and Clip lock
Impact resistance level IK09

Environmental parameters

Working temperature -40℃ ~+65℃
Storage temperature -40℃ ~+70℃
Working humidity 0%~93% (+40℃)
Pressure 70 kPa to 106 kPa

Feature

  1. IP Protection Grade: IP68
  2. The fiber terminal box is used for IP68 Mini SC Waterproof connector.
  3. Advanced structure design, easy operation and reasonable routing.
  4. 1 oval uncut cable entry, 2 derivative inputs and 10pre-plugged Mini SC adapters
  5. Available for 1×4 or 1×8 Micro PLC splitter
  6. Adopt plastic clip lock foreasy reopen and maintenance

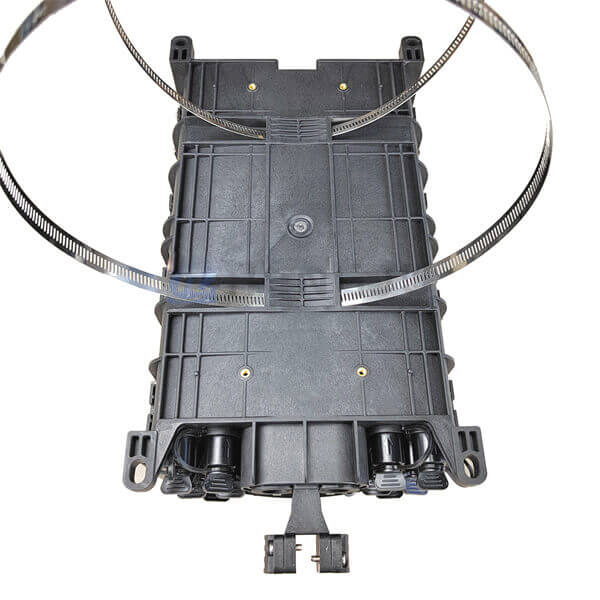

  7. Applicable for pole-mounted, air-mounted, or wall-mounted.
